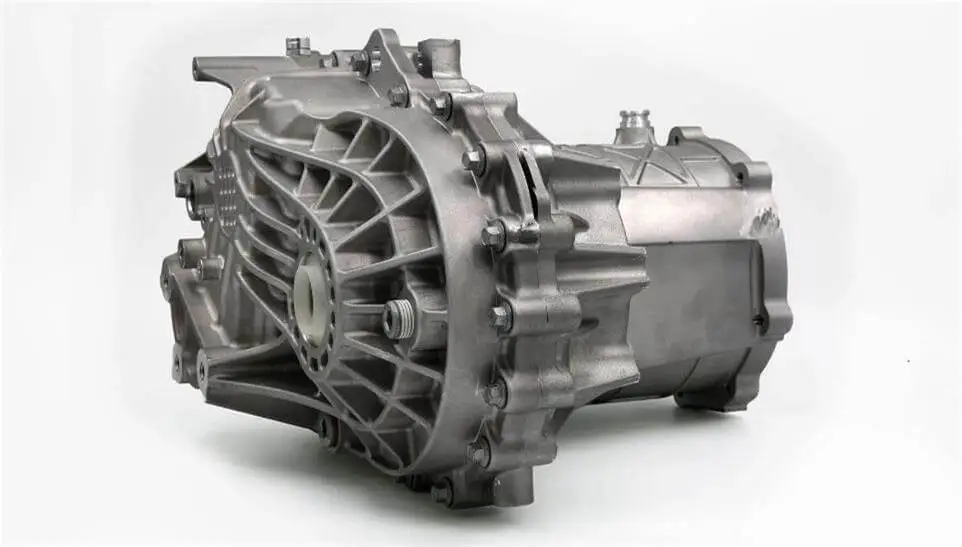

What is Gearbox Housing Die Casting?

Gearbox housing die casting is a high-pressure manufacturing process that injects molten aluminum alloy into a precision steel mold (die) to produce complex, lightweight, and dimensionally accurate transmission enclosures. This process enables the production of intricate geometries—including cooling fins, mounting bosses, and internal rib structures—that would be difficult or cost-prohibitive to achieve through machining or other casting methods.

The process typically employs cold-chamber high-pressure die casting (HPDC) machines ranging from 500 to 4,000 tons clamping force, capable of producing gearbox housings with wall thicknesses as thin as 0.8–1.5mm while maintaining tight dimensional tolerances of ±0.01mm after CNC machining. Cycle times vary from 30 seconds to 3 minutes, depending on part size, making it ideal for high-volume automotive production where annual volumes exceed 50,000 units.

The resulting components offer excellent strength-to-weight ratios, with typical aluminum die-cast gearbox housings weighing 30–40% less than equivalent iron castings while providing sufficient rigidity to maintain gear alignment under operational loads of 200–500 Nm torque.

Commonly Used Die-Casting Materials

Aluminum alloys dominate gearbox housing applications, with A380, ADC12, and A360 representing the three primary material choices, each offering distinct performance characteristics suited to specific operational requirements.

Primary Aluminum Alloys for Gearbox Housings

Alloy Selection Guidelines

• Choose A380 when seeking the optimal balance of cost, castability, and mechanical properties for standard automotive gearbox housings with wall thicknesses of 1.0–3.0mm.
• Specify ADC12 for complex geometries requiring walls thinner than 1.0mm or when a superior surface finish is required for visible components.
• Select A360 for applications exposed to corrosive environments (marine, salt spray) or where pressure tightness is critical (hydraulic circuits within the housing).

Common Quality Inspection Methods

Quality assurance for gearbox housing die castings relies on a multi-layered inspection approach combining visual, dimensional, and non-destructive testing (NDT) methods to detect both surface and internal defects. Given that gearbox housings must maintain pressure integrity and structural reliability under cyclic loading, inspection protocols typically achieve defect detection rates exceeding 99.5% for critical safety features.

Visual and Dimensional Inspection

• Visual Inspection: First-line screening identifies surface defects, including cold shuts, flow marks, blisters, drag marks, and oxidation stains. While limited to surface-only detection, this method is fast, low-cost, and identifies 80–90% of cosmetic rejections.
• Coordinate Measuring Machine (CMM): Verifies geometric tolerances to ±0.005–0.01mm, checking critical mating features such as flange flatness, bearing bore concentricity, and mounting hole positions.
• Surface Roughness Testing: Ensures sealing surfaces achieve Ra 1.6–3.2 μm to prevent fluid leakage at gasket interfaces.

Non-Destructive Testing (NDT)

• X-Ray Radiography (RT): Penetrates thick aluminum sections (up to 50mm) to reveal internal porosity, shrinkage cavities, and inclusions. Digital radiography provides immediate electronic images, while CT scanning generates 3D reconstructions for precise defect localization.
• Ultrasonic Testing (UT): Uses high-frequency sound waves (1–15 MHz) to detect internal discontinuities in thick-section castings where X-ray access is limited. Particularly effective for inspecting load-bearing mounting bosses and rib intersections.
• Pressure Testing: Automated pneumatic or hydrostatic testing (typically 0.3–0.6 MPa) identifies leak paths caused by interconnected porosity. This is mandatory for housings containing lubrication circuits.

Material Verification

• Composition Analysis: Spectrometry verifies silicon (8.5–11.5%), copper (2.0–4.0%), and iron (<1.3%) content to ensure alloy conformance to A380 or ADC12 specifications.
• Density Index Testing: Measures sample density against theoretical maximum to quantify internal porosity levels; acceptable limits typically require density >98.5% of theoretical for structural housings.

Addressing and Preventing Porosity Issues

Porosity in aluminum gearbox housing die castings manifests primarily as gas porosity (spherical voids 5–50 μm caused by trapped hydrogen) and shrinkage porosity (irregular voids 10–200 μm caused by solidification contraction), with effective prevention requiring a systems-level approach combining melt preparation, process control, and advanced casting technologies.

Melt Quality Control

• Rotary Degassing: Argon or nitrogen purging reduces dissolved hydrogen content to ≤0.12 cm³/100g Al, achieving 70–85% reduction in gas porosity. This is the single most cost-effective prevention method.
• Reduced Pressure Test (RPT): Monitors melt quality in real-time; samples showing a density index <2% indicate acceptable hydrogen levels for critical castings.
• Filtration: Ceramic foam filters (20–30 ppi) remove oxide inclusions that serve as nucleation sites for porosity.

Process Parameter Optimization

• Staged Shot Profile: Initial slow shot (0.3–0.5 m/s) followed by high-velocity switch (2.5–4.0 m/s) prevents premature solidification while minimizing turbulence and air entrainment.
• Intensification Pressure: Applying 80–120 MPa pressure during solidification forces feed metal into shrinkage cavities, reducing porosity by 30–50% in thick sections.
• Gate Design: Tapered gates (1:10 ratio, 10–15% of part cross-section) promote laminar flow, reducing porosity by 30–40% compared to abrupt transitions.

Advanced Process Technologies

• Vacuum-Assisted Die Casting (V-HPDC): Evacuating the die cavity to 50–100 mbar before metal injection eliminates trapped air, reducing total porosity by 70–80% and enabling T6 heat treatment for structural applications.
• Squeeze Casting: Combines die casting with forging by applying sustained pressure (100–150 MPa) during solidification, producing near-zero porosity components with mechanical properties approaching wrought aluminum.
• Conformal Cooling: 3D-printed mold inserts with optimized cooling channels reduce hot spots and directional solidification issues that cause shrinkage porosity.

Post-Casting Remediation

• Impregnation: Vacuum-pressure sealing with anaerobic resin seals surface-connected porosity for fluid-tight applications without improving mechanical properties.
• Hot Isostatic Pressing (HIP): Subjecting castings to 100 MPa argon pressure at 500°C collapses internal voids, achieving 99.99% density for safety-critical aerospace or high-performance automotive components.

Alternative Materials Beyond Aluminum Alloys

While aluminum alloys dominate gearbox housing production, magnesium and zinc alloys offer compelling alternatives for specific applications where weight reduction, damping capacity, or cost considerations take precedence.

Magnesium Alloys (AZ91D, AM60B)

Magnesium die castings provide 33% lower density than aluminum (1.8 g/cm³ vs. 2.7 g/cm³), making them attractive for EV gearboxes where every kilogram affects range. AZ91D offers excellent castability and corrosion resistance, while AM60B provides superior ductility and impact resistance for crash-critical applications.

• Applications: High-performance EV transmission housings, racing gearboxes, portable equipment.
• Limitations: Higher material cost (2–3× aluminum), flammability concerns during machining, and inferior corrosion resistance without protective coatings.

Zinc Alloys (Zamak 3, Zamak 5)

Zinc alloys offer exceptional fluidity, enabling wall thicknesses down to 0.4mm and complex net-shape geometries with minimal draft angles. Zamak 3 provides 280 MPa tensile strength with superior ductility (10% elongation) compared to aluminum die castings.

• Applications: Small auxiliary gearboxes, power tool transmissions, decorative housings.
• Limitations: Density 6.6 g/cm³ (2.4× aluminum) limits use in weight-sensitive applications; maximum operating temperature ~120°C restricts use in high-temperature transmission environments.

Material Selection Matrix

FAQ About Gearbox Housing Die Casting

What wall thickness can be achieved in gearbox housing die casting?

Standard aluminum die casting achieves wall thicknesses of 0.8–1.5mm for general areas and 2.0–4.0mm for structural mounting bosses. With ADC12 alloy and optimized gating, sections as thin as 0.6mm are possible for non-structural features.

Can die-cast gearbox housings be heat-treated?

Conventional high-pressure die castings cannot be T6 heat-treated due to internal porosity, causing blistering. However, vacuum die castings with porosity levels <0.3% can successfully undergo T6 treatment, achieving tensile strengths up to 380 MPa.

What is the typical production volume threshold for die casting economics?

Die casting becomes cost-competitive at annual volumes exceeding 5,000–10,000 units, with maximum economic efficiency at 50,000+ units. Below this threshold, sand casting or CNC machining may be more economical despite higher per-unit costs.

How does vacuum die casting affect part cost?

Vacuum systems add 15–25% to tooling costs and 10–15% to cycle time, but reduce scrap rates from 8–12% to 2–4% while enabling heat treatment and welding. For structural automotive components, the total cost impact is typically neutral or positive when quality improvements are considered.

What surface finishes are available for die-cast gearbox housings?

Standard as-cast surfaces achieve Ra 3.2–6.3 μm. Secondary finishing options include shot blasting (Ra 1.6–3.2 μm), anodizing (Type II decorative or Type III hardcoat), powder coating, e-coating, and chromate conversion coating for corrosion protection.

How are leak-tight requirements verified?

Pressure decay testing applies 0.3–0.6 MPa air pressure to sealed cavities, monitoring for pressure drop <5% over 30 seconds. Helium leak testing (10⁻⁶ mbar·l/s sensitivity) is used for extreme requirements such as EV battery enclosures or hermetic transmission housings .
